Introduction Of Folding Partition System

Panels are nominal 65-108mm in thickness and up to 1228mm in width. The single seamless panels are up to 13 meters high.

2.5mm welded, heavy-duty, galvanized steel frame supplied with integral factory applied aluminum vertical edge and face protection. Frame without protective vertical face trim is another option for a monolithic look.

Acoustical faces are available on each side of the panel. They are made of either MDF, gypsum board or electro-galvanized steel plate assembled to provide appropriate acoustical performance that meet STC requirements.

Frames are adaptable to paired panel or continuously hinged panel operations with recessed hinges protruding no more than 25mm and 6mm from face respectively.

Track consists of clear anodized architectural-grade aluminum alloy 6063-T6. Track incorporates alignment pins for positive alignment, is utilized for optimum sound control, and have integral support for adjoining ceiling, soffit, or plenum sound barrier.

Track intersections must be designed and constructed to enable smooth operation. They are made from the same architectural-grade extruded aluminum similar to the regular track without variation in texture and colour.

Track carriers are made with precision ground steel ball bearing wheels encased in molded polymer or precision steel tires to protect the running aluminum track surface.

Vertical sound seals are of "tongue and groove" configuration to ensure panel-to-panel alignment and prevent sound leaks between panels.

Two layers of sound insulation rubber strips and two layers of sound insulation felt at the top and bottom between the screen and the supporting rail. The mechanical top telescopic mobile support can provide 30mm conventional telescopic space at the top and bottom .

The telescopic mobile support at the bottom of the screen top can be opened and fixed at the same time by rotating the operating movable handle by 180° or by the jack support rod.

Top and bottom retractable seals not only stable the panels, but also exert at least 25kg upward and downward force when extended.

Unfinished panels are available to accommodate field-applied finishing.

In addition to gypsum board, MDF and steel plate, the standard finish of the screen can also choose blanket cloth, wood veneer finish, glass, stainless steel or other finish required by customers.

The lead panel has the option of being fixed into an acoustical wall jamb or complete with balloon vinyl seal without the need of a wall jamb.

"Final closure" panel comes with an expandable jamb exerting a minimum of 110kg (250lbs) force to tighten the partition for optimum acoustics.

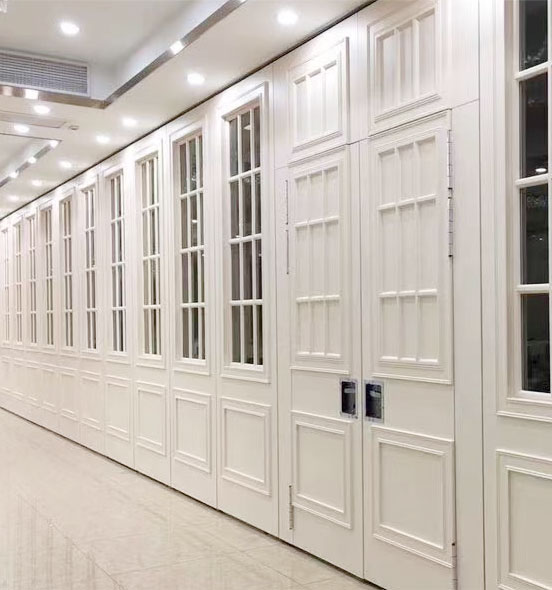

Single or double inset pass doors of the same panel thickness are also available without the need for protruding door hardwares.

The partition system has been tested by a recognized independent acoustical laboratory according to either ISO 140-3 or ASTM E90 standard for sound ratings.

The partition system purchased and installed by the manufacturer's authorized agents shall be entitled to a warranty of two years against defects in material and workmanship.

The steel frame shall be entitled to a 5-year warranty for free.
